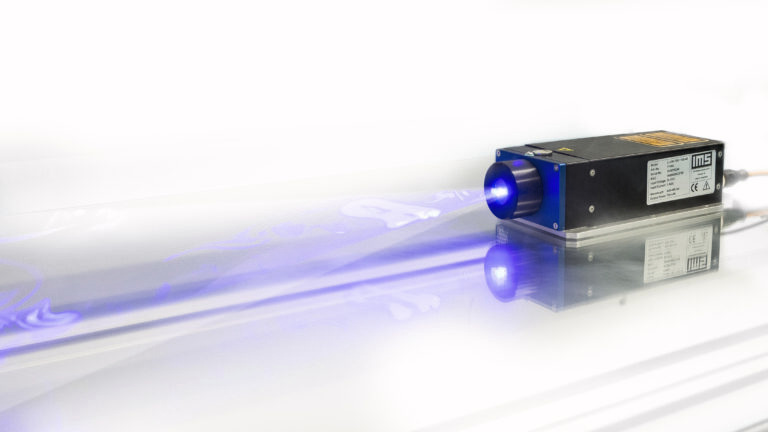

Line lasers
Contour measurement of a large-surface sheet metal panel, for instance, imposes particular requirements on the equipment used. Precise, reproducible measurement results can be obtained only if all components meet the highest accuracy requirements. This is why IMS has created its own series of line lasers. Combined with modern camera systems, you can also benefit from this level of precision; it would be a pleasure to help you find the perfect match.
Up to 1,000 mW optical output power
Homogeneous laser line up to 3 m in width
Individual advice concerning technical and economic aspects
Special features
- Optical output power is infinitely adjustable at the factory
- 4 different opening angles can be selected appropriate to the application
- 4 different wave lengths can be selected appropriate to the application
- Optimised adjustment
- Can be used in harsh environmental conditions (IP 40)
- Produced in compliance with DIN EN ISO 9001:2015
- Focal distance in 10 mm increments up to 3500 millimetres
Request a personal consultation appointment now
Simply use our Contact Form to request a consultation appointment. Provide some information about your subject of interest, and we will get back to you as quickly as possible.
We look forward to your enquiry!

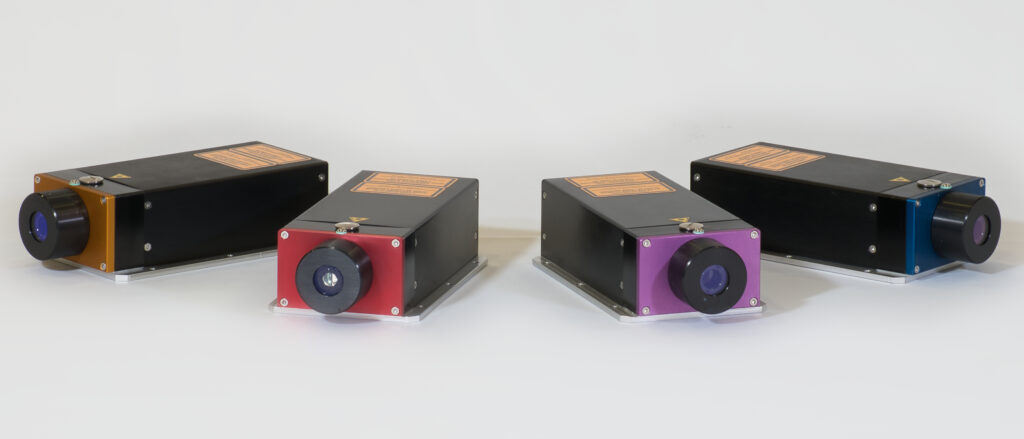

Line Lasers
- Supply voltage: 24 V DC
- Plug connection: M12, 4-pin, A-coded
- Dimensions: 194 x 90 x 56 mm
- Weight: 1 kg
- Ambient temperature: 0 to 40°C
- Humidity: < 60%
- Protection class: IP40
- Laser class: 3B
- Opening angle: 20°, 40°, 60°, and 75°
- Wavelength: 405, 450, 635 and 675
- Max. power in mW: up to 1000
- Download datasheet
